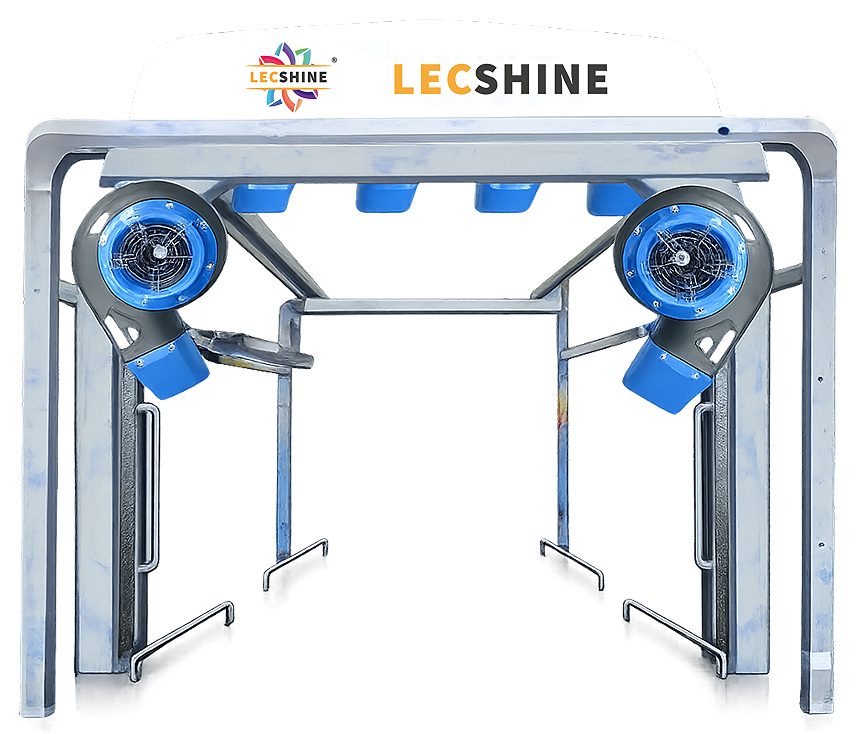

Touchless Car Wash
LM-400 Series
The Lecshine Reciprocating Automatic Car Wash Machine delivers fast, efficient, and reliable vehicle cleaning with intelligent automation, powerful washing performance, and a six-blower drying system. Designed with premium industrial components, it ensures consistent results, low operating costs, and long-term durability.
Main Parameters of Reciprocating Machine 6-Blower System
Item
Specification
Remarks
Washing Speed
2–5 minutes per vehicle
Adjustable
Water Consumption per Wash
60–360 Liters
Average varies by vehicle model
Power Consumption per Wash
1.5 kWh per vehicle
Average varies by vehicle model
Maximum Vehicle Height
2000 mm
-
Maximum Vehicle Width
2400 mm
-
Maximum Vehicle Length
5500 mm
-
Total Machine Power
41 kW
Full machine power
Machine Voltage
380V / 50Hz
Three-phase five-wire / 16 mm² national standard cable
Equipment Dimensions
7.3 m (L) × 3.6 m (W) × 2.92 m (H)
-
Washing Dimensions
5.5 m (L) × 2.4 m (W) × 2.0 m (H)
-
Installation Space Required
7.5 m (L) × 3.7 m (W) × 3.2 m (H)
Excludes front/back space and water pump room
Machine Specifications
Name
Specification
Brand
Remarks
Column / Crossbeam frame
7.3 m (L) × 3.6 m (W) × 2.45 m (H)
-
Hot-Dip Galvanized Finish
Machine Head
3.1 m × 0.73 m
-
Galvanized + Powder Coated
Spray Arm
-
-
Stainless steel
Limit Rod
2000 mm (L) × 150 mm (H)
-
Thickness 2.0mm
Cable Drag Chain (Cable Carrier)
55 × 200/ R150
-
Extended Turning Radius
Programmable Logic Controller (PLC)
LX5S-3624MT-AN
-
-
Color Touchscreen (HMI)
PI3070ig
-
-
AC Contactor
LC1-D series
-
-
Motor Protection Relay
LR-D series
-
-
Switching Power Supply (SMPS)
LRS-150-24
-
-
Intermediate Relay
RX2M2L
-
-
Control Transformer
JHDK-500VA
-
-
Miniature Circuit Breaker (MCB)
NXB series
-
-
Phase Failure & Phase Sequence Protection Relay
XJ3-J
-
-
Control Push Button
GB series
-
-
Proximity Sensor
NBB series
PEPPERL+FUCHS
-
Photoelectric Sensor
S186E series
BANNER
-
Plunger Pump
FKH45
-
-
Plunger Pump Variable Frequency Drive (VFD)
MD290T18.5G/22PB
INOVANCE
-
Foam Pump
CHL series
-
-
Pulse Metering Pump
DFD series
LEADERSHIP
-
Travel Motor (Drive Motor)
WD80M-100255-E1B
WECON
-

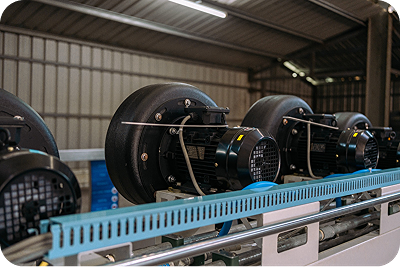

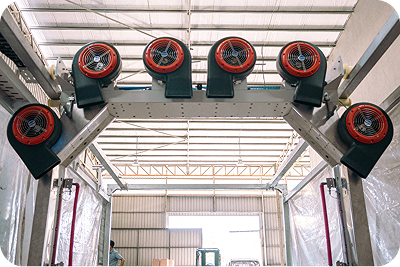

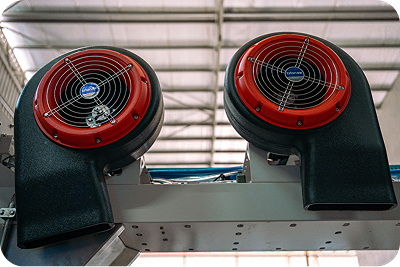

Blower
380V/ 3KW
-
-
Pneumatic Solenoid Valve
SNS-2V025
-
-
Water Solenoid Valve
SNS-2W160-15
-
-
Pneumatic Directional Control Valve
Q1614F-16P
-
-
LED Display
Waterproof
-
-
